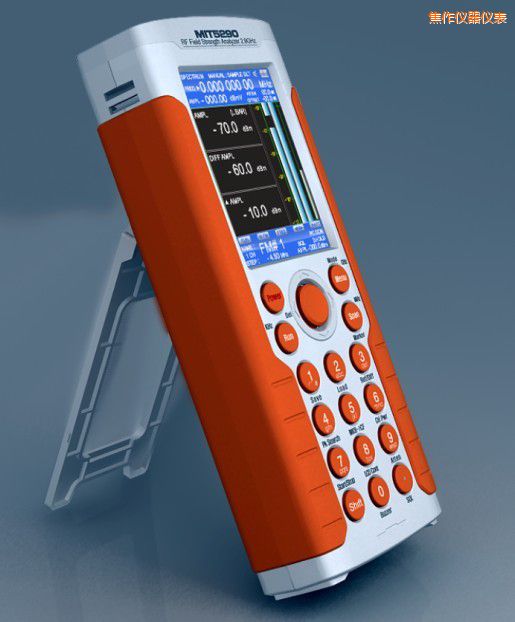

焦作UBA-9210 射频场强分析仪UBA-9210,焦作UBA-9210 射频场强分析仪价格

焦作UBA-9210 射频场强分析仪-UBA-9210-进口

UBA-9290(2.9GHz)/9210(2.1GHz)
RF Field Strength Analyzer Specifications
Specifications
Frequency		Range	100㎑ to 2900㎒(2.9GHz) // 100㎑ to 2100㎒(2.1GHz)
		Accuracy	TCXO : ±2.5PPM
		Reception Sensitivity	Approx. 0 - 6 dBu EMF (S/N : 10dB at W-FM, 12dB at N-FM)
		Step Range	Multiples of 5㎑ & 6.25kHz
		Span Range	1MHz to Max.1000MHz (1,2,5 Step / at 200CH)
Amplitude(Level)	N-FM	Range	-32dBm to -117dBm for 1MHz to 2900MHz (UBA-9290)
			-67dBm to -117dBm for 1MHz to 2100MHz (UBA-9210)
		Resolution	±0.1dB
		Accuracy	±2.0dB(at an ambient of temperature of (23℃±3℃: UBA-9290)
			±2.5dB(at an ambient of temperature of (23℃±3℃: UBA-9210)
		Repeatability	±2dB
		Bandwidth	N-FM: Apprx 12.5㎑(-6dB)
	W-FM/AM/SSB	Range	-22dBm to -107dBm for 10MHz to 2900MHz (UBA-9290)
			-57dBm to -107dBm for 1MHz to 2100MHz (UBA-9210)
		Resolution	±0.1dB
		Accuracy	±2.0dB(at an ambient of temperature of (23℃±3℃: UBA-9290)
			±2.5dB(at an ambient of temperature of (23℃±3℃: UBA-9210)
		Repeatability	±2dB
		Bandwidth	W-FM: Apprx 180㎑(-6dB), AM/SSB: Appex 2.4㎑(-6dB)
		Spurious and Noise Level Internally Generated : -35dBc W-FM
		: -45dBc for N-FM Typical, Below a Full Scale Signal Level Frequency.
		Input Impedance	50Ω (Standard)
		Max. Input Voltage	Max. 5V RMS
		Level Units	dBm, dBmV, dBuV
		Reference(Internal Atten. Max 35dB : Only UBA-9290)	-22dBm(W-FM/AM/SSB : 35dB), -32dBm(N-FM : 35dB)
			-27dBm(W-FM/AM/SSB : 30dB), -37dBm(N-FM : 30dB)
			-37dBm(W-FM/AM/SSB : 20dB), -47dBm(N-FM : 20dB)
			-47dBm(W-FM/AM/SSB : 10dB), -57dBm(N-FM : 10dB)
Functions		Display Modes	Spectrum Display
			Multi Bar Graph Display (5, 10, 20, 50, 100, 200 CH)
			Single Bar Graph Display
			Difference Frequency Display
			Frequency Counter
		Sweep & Hold Modes	Free Run, Single Run
			Squelch Delay(Run, Hold, Stop)
			Squelch Max. Hold
		Scan Modes	Manual, Search Scan & CH. Memory
		Marker	Marker, Delta Marker, Peak Search, Marker Center
Sweep		Speed	Min.500msec
		Trigger Source	Narrow FM/ Wide FM/AM/SSB
Memory		Trace Storage	100 Waveforms
		Setup Storage	100 Waveforms
Display		Type	3.5 inch TFT Color LCD
		Display Resolution	320(RGB)×240
		LCD Backlight	ALWAYS ON(White LED)
Frequency Counter		Range	9㎒ ~ 2900㎒
		RF Input Connector	BNC Type Female, 50ohms(Standard)
		Digit / Resolution	7 Digit / 1㎑
		Accuracy	±50PPM, ±1 Count
		Sampling Time	0.512 sec.
		Input Sensitivity	9㎒ ~ 2000㎒ : 150㎷ RMS
			20㎒ ~ 1000㎒ : 100㎷ RMS
			2001MHz ~ 2900MHz : 400mV RMS
Power		Power Source	(1.2V)AA Type Ni-MH Rechargeable Battery × 6pcs / Alkaline Battery × 6pcs
		Power Adaptor	SMPS Type AC Adaptor (9V)
		Auto Power	OFF/ 5min/ 10min/ 20min/ 30min
Other		Jog S/W	Multi Function Switch(4-direction, Center push)
		Interface	USB
		Interface(Speed)	4800, 9600, 14400, 19200, 38400, 57600, 76800
			115200, 153600, 250000 bps
		Audio Output	1W into 8Ω Speaker
Physical Specifications		Operation Temperature & Humidity	0℃ to 40℃ at 35-85% RH
		Storage Temperature	10℃ to 50℃
		Dimension	82(W) × 205(H) × 36(D)mm
		Weight	Approx. 395g (Except Antenna, Battery)
Accessories		Standard	Carrying Case
			Antenna(Receive Only)
			Manual
			BNC to BNC
			Earphone
			Ni-MH Rechargeable Batteries
			AC/DC Adapter
			N-Type to BNC Adapter
			USB Cable
			Carrying Strap
			GUI Software
		Optional	Attenuator (10dB, 20dB, 30dB, 40dB)

UBA-9290/UBA-9210射频场强分析仪技术参数:

，，
