    HVAC/R Single User Temperature Recorder
    型 号:17100
    品 牌:美国DeltaTRAK
    技术指标:温度范围:-20°F to 100°F (-29°C to 38°C)
    瑞安HVAC/R Single User Temperature Recorder-17100-美国DeltaTRAK


    Technicians use the DeltaTrak HVAC/R low cost, single-use temperature recorder for spot checking and troubleshooting of HAVC/R equipment and facilities. It is used for maintenance, heating, ventilation, air-conditioning and refrigeration applications.

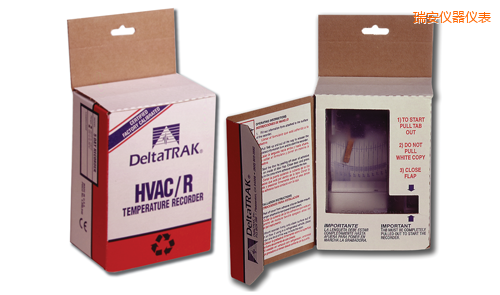

    The HVAC/R Single-Use Temperature Recorder, Model 17100, is encased in a highly durable clear plastic body for easy visualization of the recorder's internal workings to ensure tamper-free operation of the instrument. A removable cardboard enclosure wraps around the temperature recorder to add extra protection from wetness and physical impacts. Only DeltaTRAK's patented temperature recorder design has the carbon-copy equipment-usage record slip permanently attached to the strip chart such that each chart can be easily identified and filed. The HVAC/R Single-Use Temperature Recorder is ideal for use in places where expensive units may be damaged or stolen, or multiple recorders are needed at the same time.


    The low-cost alternative to traditional recorders. Ideal for use where expensive recorders may be damaged or stolen, or when multiple recorders are needed. Factory calibrated and ready for use.


    •    Equipment diagnosis
    •    Facility maintenance
    •    Refrigeration
    •    Heating
    •    A/C
    •    Ventilation



    Model 17100 HVAC/R Disposable



    Feature Specification

    Temperature Range -20°F to 100°F (-29°C to 38°C)
    Accuracy ±2°F (1°C) or better
    Chart Pressure sensitive, total length 36 inches (91.4cm), dual scale °F/°C Sensor
    Sensor Bi-metal coil
    Drive Solid-state quartz motor
    Battery AA alkaline (3-year shelf life)
    Size 5.5 in (L) x 4 in (W) x 2.5 in (H), 14 cm (L) x 10 cm (W) x 6.3
    cm (H)
    Weight 11 oz. (311g)
    Case lot/Weight 20 units per carton/ 15lbs.(6.8kg)
    Certification/Calibration Certification/Calibration CE mark by T.U.V., traceable to N.I.

    Revision 10C1
