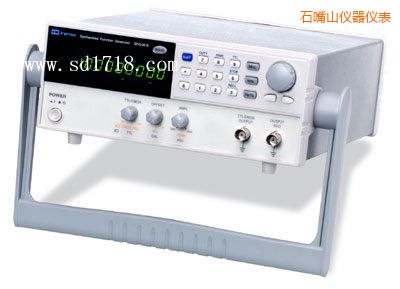

石嘴山数位合成函数信号产生器-SFG-2007-台湾固纬GWINSTEK

MAIN
Frequency Range (For Sine, Square)	0.1Hz~7MHz
Frequency Range (For Triangle)	0.1Hz~1MHz
Frequency Resolution	0.1Hz
Frequency Stability	± 20 ppm
Frequency Accuracy	± 20 ppm
Frequency Aging	± 5 ppm / year
Output Function	Sine, Square, Triangle
Amplitude Range	10Vpp(into 50Ωload)
Flatness(Sinewave relative to 1kHz)	＜± 0.3dB,0.1Hz～1MHz; ＜± 0.5dB,1MHz～4MHz; ＜± 2dB, 4MHz～10MHz
Impedance	50Ω±10％
Attenuator	-20dB±1dB×2
DC Offset	＜-5V～＞+5V(into 50Ωload)
Duty Control Range	20% to 80% below 1MHz (Square wave only)
Duty Control Resolution	1%
Display	9 digits LED display
SINE WAVE
Harmonics Distortion	-55dBc,0.1Hz～200kHz; -40dBc,0.2MHz～4MHz; -30dBc,4MHz～10MHz (Specification applied from MAX. to 1/10 level)
TRIANGLE WAVE
Linear	≧98％,0.1Hz～100kHz;≧95％,100kHz～1MHz
SQUARE WAVE
Symmetry	± 1% of period +4ns to 0.1Hz～100kHz ;Rise or Fall Time; ≦25ns at maximum output.(into 50Ωload)
CMOS OUTPUT
Level	4Vpp±1Vpp～14.5Vpp±0.5Vpp adjustable; Rise or Fall Time; ≦120ns
TTL OUTPUT
Level	≧3Vpp ; Fan Out; 20 TTL load ; Rise or Fall Time ; ≦25ns
STORE/RECALL FUNCTION
	10 groups of Setting memories
POWER SOURCE	AC115V, 230V±15%,50/60Hz

ACCESSORIES
	Instruction manual x 1 Power Cord x 1 GTL-101 x 1
DIMENSION & WEIGHT	107(W)×266(H)×293(D) m/m Approx. 3.1kg

，，
