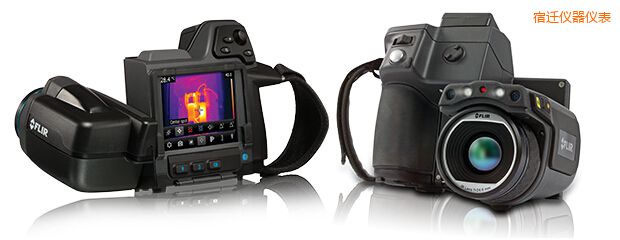

宿迁热成像相机-T600-美国FLIR

为确保设备可靠运行，红外热像仪成像，您需要能够帮助您快速查找和报告问题的故障排除工具。这正是 FLIR 红外相机不可或缺的原因所在。FLIR 红外相机能够使您尽早察觉由电阻和机械磨损产生的不可见热量，求购红外热像仪，以助您防范代价高昂的停机时间和潜在危险。在所有热像仪产品中，T 系列产品是您捕捉和分享结果最轻松、最快捷的选择，红外热像仪技术指标，是释放 FLIR 能量的终极方案！

极限分辨率

FLIR 具有最强成像性能和精度的手持产品

3 superior thermal imaging choices including 640 × 480 native resolution
Up to 1.2 MP thermal resolution with UltraMax™ – a 4× improvement for finer detail and accuracy
MSX® enhancement that etches key visible details such as numbers, labels, etc. onto live, stored, and UltraMax thermal images for easier locating
Class-leading sensitivity as fine as <0.02°C for outstanding image quality and subtler thermal patterns
Temperature range calibrations up to 2,000°C for measuring the hottest targets最佳人体工程学
覆盖所有角度 - 更快成像 - 工作更舒适

T 系列相机具有无与伦比的灵活性，非致冷医用红外热像仪，能够非常轻松地瞄准、聚焦和使用。

旋转的聚光装置可上下旋转 120 度
自动定向可切换屏幕数据为肖像视图或风景视图
最快速的自动对焦、手动控制，以及更出色的精确成像

快速通信

即时生成数据，热成像仪价格，更快速地返回决策

借助无线途经或 FLIR 工具（PC 或 Mac 版）分享图像和嵌入表数据。

FLIR 工具移动应用程序可连接相机与移动设备，从而使您能够对现场热视频进行流处理、采取远程控制、分析存储的图像，并迅速通过电子邮件传送现场发现。
FLIR MeterLink® 测试与测量工具可直接向相机传输可读数据，相机会在您捕获数据时存储辐射图像的数据，红外热像仪摄像机，以用于报告中。
FLIR 工具报告软件还提供更多功能，可以将更多测量工具添加到图像中，生成深入的报告以及更新相机固件等。

提高生产力

有用的配件

可选镜头及更多饰品

可更换长焦，红外热像仪镜头，广角和特写镜头
额外的电池和充电器

备用电缆和SD卡
摄影包和疑难案件

卓越的支持

随时准备帮助您得到最出你的 T-系列

专业的客户服务，法国红外热像仪，以解决应用问题，红外热像仪行业研究报告，并正确的满足您的需求
技术支持，进口红外热像检测仪，以帮助校准和其他维护维修
FLIR的独家2-5-10保修，可以帮助保护您的投资
ITC 从热成像培训的黄金标准的教育和认证

	T420	T440	T460	T600	T620	T640	T660
Accuracy	+/-2°C (+/-3.6°F) or +/-2% of reading, whichever is greater, at 25°C (77°F) nominal		+/-1°C (+/-1.8°F) or +/-1% of reading for limited temperature range; ±2°C (±3.6°F) or 2%, whichever is greater, at 25°C (77°F) nominal	+/-2°C (+/-3.6°F) or +/-2% of reading, whichever is greater, at 25°C (77°F) nominal			+/-1°C (+/-1.8°F) or +/-1% of reading for limited temperature range; ±2°C (±3.6°F) or 2%, whichever is greater, at 25°C (77°F) nominal
Thermal Resolution	76,800 (320 × 240)			172,800 (480 × 360)	307,200 (640 × 480)
Thermal Sensitivity	<0.04°C @ 30°C		<0.03°C @ 30°C	<0.04°C @ 30°C		<0.03°C @ 30°C	<0.02°C @ 30°C
Temperature Range	-4°F to 1,202°F (-20°C to 650°C) Optional to 2,192°F (1,200°C)	-4°F to 2,192°F (-20°C to 1,200°C)	-4°F to 2,732°F (-20°C to 1,500°C)	-40°F to 1202°F (-40°C to 650°C)	-40°F to 1,202°F (-40°C to 650°C) Optional: to 3,632°F (2,000°C)	-40°F to 3,632°F (-40°C to 2,000°C)
Measurement Presets	7 presets: center spot; hot spot (box max); cold spot (box min); 3 spots; hot spot - spot (box max + spot + delta); hot spot - temperature (box max + ref temp + delta); no measurements	6 presets: center spot; hot spot (box max); cold spot (box min); no measurements; user preset 1; user preset 2
UltraMax™	Included			N/A	Included
User Presets	N/A	Included
Spot Mode	5 moveable			10 moveable
Area Mode	Included
Profile	N/A	Included			N/A	Included
Color Alarm (isotherm)	Blue below, red above, yellow interval
Frame Rate	60 Hz			30 Hz
Field of View	25° × 19°
Optional Lenses	6°, 15° Tele, 45° & 90° Wide; Close up: 100 μm, 50 μm			25°, 7° & 15° Tele, 45° & 80° Wide; Close up: 100 μm, 50 μm, 25 μm
Focus	Manual & Automatic					Manual, Automatic, and Continuous
Continuous Auto Focus	N/A					Included
Min. Focus Distance	1.31 ft (0.4 m)			0.82 ft (0.25 m)
Radiometric Recording	N/A		CSQ to memory card	N/A			CSQ to memory card
Radiometric JPEG via USB	Included
Radiometric JPEG to SD Card	Included
MPEG4 to SD (non-radiometric IR)	Included
MPEG4 via USB (non-radiometric IR/Visual)	Included
Radiometric streaming via USB	Included
Display Size	3.5”			4.3”
Touchscreen	Standard			Capacitive touch screen
Auto Orientation	Included
MSX Thermal Image Enhancement	Included
Viewfinder	N/A					Included
Color (Palettes)	7: Arctic, White hot, Black hot, Iron, Lava, Rainbow, and Rainbow High Contrast
Battery Operating Time	>4 hrs			>2.5 hrs
Built-in Digital Camera	3.1 MP			5 MP
Built-in Illuminator LED	Included
Digital Zoom	2× and 4×	2×, 4× and 8×		2× and 4×	2×, 4× and 8×
MeterLink® connectivity	Included
Laser Pointer + Laser Locator (on IR image)	Included
Compass	Included			N/A	Included
GPS	N/A				Included
IR Window Correction	Included
Difference temperature/Delta T	Included
Picture in Picture	Scalable & Moveable
Notes	Included
Sketch on IR/Visual Image	N/A	Draw on screen or add predefined stamps
Voice/Text Annotation	Included
FLIR Tools for PC and Mac	Included
FLIR Tools Mobile app (Wi-Fi)	Included
Streaming Video via app (Wi-Fi)	Included
Remote Control via app (Wi-Fi)	Included
Weight (including battery)	1.94 lbs (0.88 kg)			2.87 lbs (1.3 kg)

*免责声明：规格如有变更，恕不另行通知。可用性相机型号和附件受区域市场的考虑。
