A simple, complete gas calibration solution
Fluke Calibration
6241 and 6242 PPC4E gas pressure controller kits feature PPC4E models to cover
a very wide workload combined with the accessories needed for a complete
calibration system. Included is the Fluke Calibration SPLT self-purging liquid
trap to capture moisture in the test line and automatically purge to prevent
contamination of the PPC4E, preventing errors and protecting your investment.
Also included is interconnect hardware and a test station with a quick connect
fitting to mount your pressure device to be tested. 6241 and 6242 kits provide
the hardware for a complete gas calibration system.
·
Precise pressure measurement and automated
control, with ranges available from ± 15 kPa to 14 MPa (± 2.2 psi to 2,000 psi)
·
Gauge, absolute and negative gauge
(vacuum) modes included on most models
·
Switch between absolute, gauge and
bidirectional gauge modes and meet easy-to-understand full-year measurement
specifications without added hardware or special calibration or maintenance
operations
·
± 0.02 % one-year accuracy of any selected
Autorange span, with Autorange span as low as 1 % of device full scale. Up to
100:1 accurate ± 0.02 % measure and control range turndown can truly be
realized by a single calibrator
·
Self-purging liquid trap included to
automatically protect PPC4E from system contamination
·
AutoTest™, AutoRange, ready/not ready
indicator, set point jog feature, real-time measurement uncertainty display,
RS-232 and IEEE-488.2 remote interfaces and other advanced features to
automate, simplify testing, improve safety and prevent calibration errors and
damage to equipment
·
Quick connect test stand and interconnect
to connect to the device under test
·
Standard color graphical user interface
with full support in 11 languages
Outstanding, wide-range performance in a single instrument

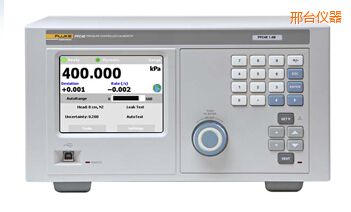

The Fluke
Calibration PPC4E is the latest member of our PPC family of controller/
calibrators to deliver extremely broad pressure range coverage at a level of
performance that addresses your most common calibration workload. Calibrate
transmitters, transducers, pressure switches, indicators, barometers and analog
and digital gauges with ease using the color graphical user interface and
advanced features.
PPC4E nominal
measurement uncertainty is ± 0.02 % of AutoRanged span. The AutoRange feature
allows you to quickly and easily align PPC4E performance to match your
requirements exactly. Are you trying to decide if you can provide the best
coverage if you buy a 300 psi or a 160 psi calibrator? What if you later need
to calibrate a 200 psi device? With PPC4E it doesn’t matter—accuracy is based
on any AutoRanged span you enter, as long as it is within the instrument’s
turndown range:
·
PPC4E models, 10:1 turndown (0.02 % of any
AutoRanged span down to 10 % of PPC4E full scale pressure span)
·
PPC4EX models, 100:1 turndown (0.02 % of
any AutoRanged span down to 1 % of PPC4E full scale pressure span)
What if you
receive a barometer for calibration? …or a vacuum gauge? PPC4E is still the
right tool. All models (except for PPC4E 15K) include absolute pressure and
negative gauge (vacuum) capabilities. Some PPC4E models also provide excellent
coverage of draft pressure (inches of water, mbar) ranges. With multiple
pressure modes and very wide turndown capabilities, one PPC4E controller can
effectively replace multiple controllers, calibrators or even gas deadweight
testers and deadweight ball gauges. Move up to the well-known reliability and
precision of a Fluke Calibration PPC4E pressure controller and enjoy great
value and return on investment.
General Specifications
|
|
Warm up time
|
None
required, 30 minute temperature stabilization recommended for best
performance from cold power up
|
|
Resolution
|
To
1 ppm, user adjustable
|
|
Power
requirements
|
100
to 240 V ac (-15%, +10%), 50-60 Hz, 70 VA max consumption
|
|
Operating
temperature range
|
10
to 40 °C
|
|
Weight
|
16.6
kg (36.5 lb)
|
|
Dimensions
|
19
cm H x 35 cm W x 45 cm D (7.5 in. x 13.8 in. x 17.7 in.)
|
|
Remote
communication interfaces
|
RS232
(COM1, COM2), IEEE-488.2, USB (front panel, firmware load only)
|
|
Operating
medium
|
Any
clean, dry, non-corrosive gas
|
|
Pressure
connections
|
|
TEST (+), TEST (-):
|
1/8
in. NPT F
|
|
SUPPLY:
|
1/8
in. NPT F
|
|
EXHAUST:
|
3/8
in. NPT F
|
|
ATM:
|
10-32
UNF
|
PPC4E measurement uncertainty (includes precision and one year
stability)1,2
|
|
PPC4EX 14M
|
Gauge
uncertainty1,3
% of AutoRanged span: 0.02
Minimum AutoRanged span [kPa]2: 140
Absolute
uncertainty1,4
% of AutoRanged span: 0.02
Constant [kPa]: 0.1
Minimum AutoRanged span [kPa]2: 140
|
|
PPC4E 14M
|
Gauge
uncertainty1,3
% of AutoRanged span: 0.02
Minimum AutoRanged span [kPa]2: 1400
Absolute uncertainty1,4
% of AutoRanged span: 0.02
Constant [kPa]: 1
Minimum AutoRanged span [kPa]2: 1400
|
|
PPC4EX 7M
|
Gauge
uncertainty1,3
% of AutoRanged span: 0.02
Minimum AutoRanged span [kPa]2: 70
Absolute
uncertainty1,4
% of AutoRanged span: 0.02
Constant [kPa]: 0.05
Minimum AutoRanged span [kPa]2: 70
|
|
PPC4E 7M
|
Gauge
uncertainty1,3
% of AutoRanged span: 0.02
Minimum AutoRanged span [kPa]2: 700
Absolute
uncertainty1,4
% of AutoRanged span: 0.02
Constant [kPa]: 0.5
Minimum AutoRanged span [kPa]2: 700
|
|
PPC4EX 1.4M
|
Gauge
uncertainty1,3
% of AutoRanged span: 0.02
Minimum AutoRanged span [kPa]2: 14
Absolute
uncertainty1,4
% of AutoRanged span: 0.02
Constant [kPa]: 0.014
Minimum AutoRanged span [kPa]2: 70
|
|
PPC4E 1.4M
|
Gauge
uncertainty1,3
% of AutoRanged span: 0.02
Minimum AutoRanged span [kPa]2: 140
Absolute
uncertainty1,4
% of AutoRanged span: 0.02
Constant [kPa]: 0.1
Minimum AutoRanged span [kPa]2: 140
|
|
PPC4EX 100K
|
Gauge
uncertainty1,3
% of AutoRanged span: 0.02
Minimum AutoRanged span [kPa]2: ± 1
Absolute
uncertainty1,4
% of AutoRanged span: 0.02
Constant [kPa]: 0.014
Minimum AutoRanged span [kPa]2:70
|
|
PPC4E 100K
|
Gauge
uncertainty1,3
% of AutoRanged span: 0.02
Minimum AutoRanged span [kPa]2: ± 10
Absolute
uncertainty1,4
% of AutoRanged span: 0.02
Constant [kPa]: 0.014
Minimum AutoRanged span [kPa]2: 70
|
|
PPC4E 15K
|
Gauge
uncertainty1,3
% of AutoRanged span: 0.02
Minimum AutoRanged span [kPa]2: ± 1.5
|
1.
Maximum deviation of the
RPT indication from the true value of applied pressure including precision,
predicted one year stability limit, temperature effect and calibration
uncertainty, combined and expanded (k=2) following the ISO “Guide to the
Expression of Uncertainty in Measurement."
2.
For AutoRange spans below
the Minimum AutoRanged span uncertainty is equal to the value at the Minimum
AutoRanged span.
3.
Gauge uncertainty is a % of
AutoRanged span. For example, an AutoRanged span of 3 500 kPa on model PPC4E 7M
would have uncertainty of (0.02% * 3 500 kPa) = 0.35 kPa.
4.
Absolute uncertainty is the
sum of a % of AutoRanged span and a Constant that accounts for zero drift. For
example, an AutoRanged span of 80 kPa on model PPC4EX 100K would have
uncertainty of (0.02% * 80 kPa + 0.014 kPa) = 0.03 kPa.
On-board barometer
The
on-board barometer is used only to measure changes in atmospheric pressure to
provide dynamic compensation of an absolute RPT’s atmospheric pressure offset
in gauge measurement mode with PPC4E models other than PPC4E 15k.
On-board barometer
|
|
Warm up time
|
None
required
|
|
Range
|
70
to 110 kPa (10 to 16 psi)
|
|
Resolution
|
0.001
% of span
|
|
Precision
Predicted stability
|
0.1
% of span
0.05 kPa/yr (0.008 psi/yr)
|
Pressure control specifications
|
|
Control
precision
|
PPC4E:
±0.0006% of controller span
PPC4EX:
±0.0006% of controller span (AutoRanged span >10% of controller span)
±0.00006% of controller span (AutoRanged span ≤10% of controller span)
|
|
Lowest
controllable pressure
(gauge mode)
|
Zero
set by automated venting. Lowest point above or below zero limited only by
RPT resolution and control precision.
|
|
Lowest
controllable pressure
(absolute, negative gauge modes)
|
1
kPa absolute (0.15 psia) or gauge equivalent, for all models except
PPC4E 7M and PPC4E 14M
3.5 kPa(0.5 psia) for PPC4E 7M
7 kPa(1 psia) for PPC4E 14M
|
|
Ultimate
pressure
(absolute, negative gauge)
Depending on vacuum pump and connections
|
200
to 700 Pa absolute(2 to 7 mbar, 0.03 to 0.1 psia) or gauge equivalent
|
|
Typical
pressure setting ready time
(0.005% hold limit, 50 cc test volume)
|
15
to 30 s
|
|
Slew time
(ATM to FS with 50 cc test volume)
|
30
s
|
|
Typical test
volume
|
0
to 1000 cc for Controller Range of 1.4 MPa
[300 psi] or less
0 to 500 cc for Controller Range greater than 1.4 MPa [300 psi]
|
|
Default dynamic
control hold limit
|
±
0.01 % of current range
|
|
型号
|
描述
|
|
6241-15K
|
PPC4E Gas Pressure Controller
Kit with PPC4E 15K, ± 1.5 to ± 15 kPa (± 0.2 to ± 2.2 psi)
Includes:
· PPC4E
pressure controller/calibrator with power line cords and operating manual
· SPLT
self-purging liquid trap with connector to PPC4E
· Mountable
test stand for device under test with interconnect and quick connect fitting
with adapters
|
|
6241-100K
|
PPC4E Gas Pressure Controller
Kit with PPC4E 100K, ± 10 to ± 100 kPa (± 1.5 to ± 15 psi)
Includes:
· PPC4E
pressure controller/calibrator with power line cords and operating manual
· SPLT
self-purging liquid trap with connector to PPC4E
· Mountable
test stand for device under test with interconnect and quick connect fitting
with adapters
|
|
6241-1.4M
|
PPC4E Gas Pressure Controller
Kit with PPC4E 1.4M, 140 to 1,400 kpa (20 to 200 psi)
Includes:
· PPC4E
pressure controller/calibrator with power line cords and operating manual
· SPLT
self-purging liquid trap with connector to PPC4E
· Mountable
test stand for device under test with interconnect and quick connect fitting
with adapters
|
|
6241-7M
|
PPC4E Gas Pressure Controller
Kit with PPC4E 7M, 700 to 7,000 kPa (100 to 1,000 psi)
Includes:
· PPC4E
pressure controller/calibrator with power line cords and operating manual
· SPLT
self-purging liquid trap with connector to PPC4E
· Mountable
test stand for device under test with interconnect and quick connect fitting
with adapters
|
|
6242-100K
|
PPC4E Gas Pressure Controller
Kit with PPC4EX 100K, ± 1 to ± 100 kPa (± 0.15 to ± 15 psi)
Includes:
· PPC4E
pressure controller/calibrator with power line cords and operating manual
· SPLT
self-purging liquid trap with connector to PPC4E
· Mountable
test stand for device under test with interconnect and quick connect fitting
with adapters
|
|
6242-1.4M
|
PPC4E Gas Pressure Controller
Kit with PPC4EX 1.4M, 14 to 1,400 kpa (2 to 200 psi)
Includes:
· PPC4E
pressure controller/calibrator with power line cords and operating manual
· SPLT
self-purging liquid trap with connector to PPC4E
· Mountable
test stand for device under test with interconnect and quick connect fitting
with adapters
|
|
6242-7M
|
PPC4E Gas Pressure Controller
Kit with PPC4EX 7M, 70 to 7,000 kPa (10 to 1,000 psi)
Includes:
· PPC4E
pressure controller/calibrator with power line cords and operating manual
· SPLT
self-purging liquid trap with connector to PPC4E
· Mountable
test stand for device under test with interconnect and quick connect fitting
with adapters
|
|
6242-14M
|
PPC4E Gas Pressure Controller
Kit with PPC4EX 14M, 140 to 14,000 kPa (20 to 2,000 psi)
Includes:
· PPC4E
pressure controller/calibrator with power line cords and operating manual
· SPLT
self-purging liquid trap with connector to PPC4E
· Mountable
test stand for device under test with interconnect and quick connect fitting
with adapters
|
通用配件:
|
配件
|
描述
|
|
Case
|
加固且可重复使用的模制装运外壳（部件号3338097）
|
|
机架安装套件
|
标准19in机架安装工具机架
|
|
PK-PPC-BG-DVU
|
BG15K Q-RPT用双倍容积单元（部件号3070389）
|
|
真空参考套件，，220V
|
用于PPC EXHAUST端口的真空泵套件包括连接器（部件号3584486）
|
|
COMPASS
for Pressure
|
自动执行测试、数据采集、报告与设备资产管理的软件
|
|
RS232
|
9针线，，2m，，用于PPC4E COM1（部件号2758335）
|
